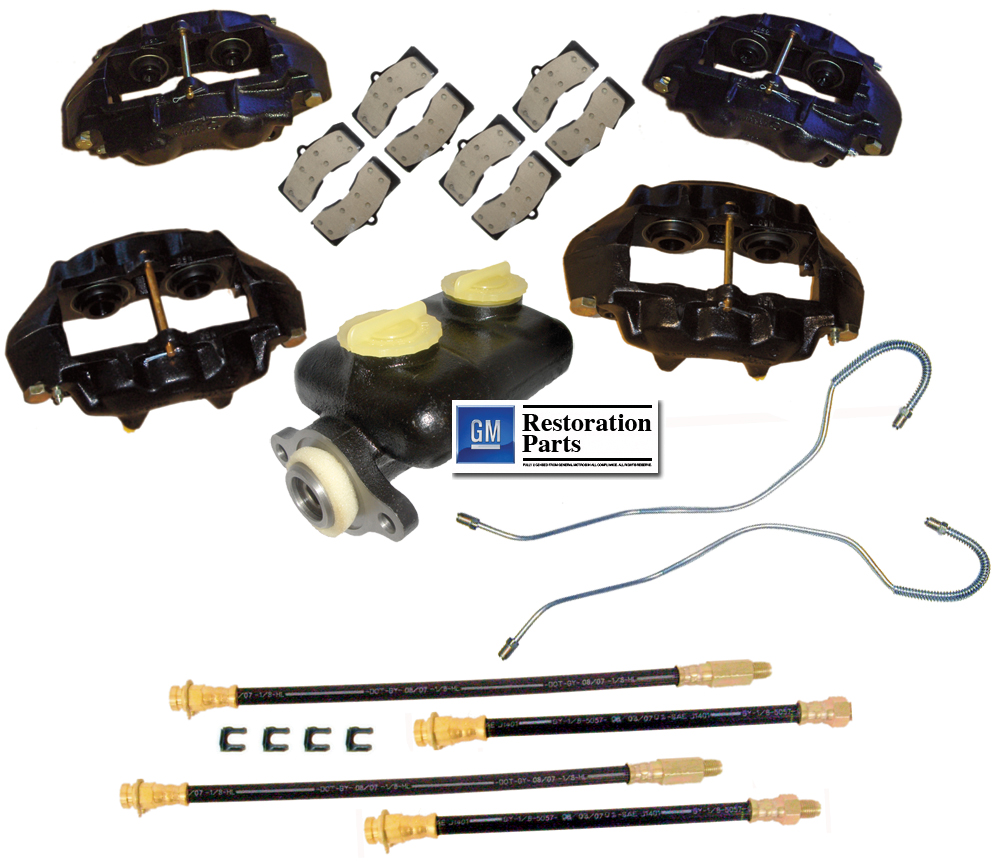

1965-66 Corvette COMPLETE Brake Kit Package (Power)

Price: $1,205.54

IN STOCK!
PART#: BK-6566P

Four (4) Stainless Steel Sleeved Calipers. O-Ring style Pistons which are less prone to leakage. Brand new Master Cylinder, a complete set of premium brake pads, 4 rubber brake hoses, Copper inlet washers, Pad pins, 2 rear metal caliper lines,



EARLY 1965-66  |  PART # BK-6566P
    Complete "All the Way"
Power Brake Kit Package




  • New GM Delco Moraine Master Cylinder
  • Stainless Steel Sleeved, O-Ring Brake Calipers
  • GM Licensed Riveted Organic Brake Pads
  • Rear Brake Lines
  • Front/Rear Brake Hoses
  • Hardware Kit






Only top quality parts in this Complete Power Brake Package for your Early 1965  Corvette. Featuring a brand new 100% Correct Licensed GM Delco Moraine Master Cylinder with Bonus Upgraded Stainless Steel O-Ring Style Piston Calipers. You'll also get brand new rear brake lines, front/rear rubber brake hoses with hardware and a complete set of organic brake pads.

    Kit includes:

  • Brand New GM Licensed Delco Moraine Master Cylinder
  • 4 Disc Brake Calipers (O-Ring, Stainless Steel Sleeved)
  • Left & Right Rear Brake Lines with correct factory TBW finish and fittings
  • Front & Rear US Made Goodyear Rubber Brake Hoses with Hardware Kit
  • Complete Front & Rear Set of Organic Brake Pads

 Click Here For Caliper Core Information

Refundable Core Charge Required: You must add a Caliper Refundable Core charge of $220.00 ($55.00 each caliper in the 4 caliper set). You may send us your rebuildable caliper cores first to avoid this charge and we will ship your order once they have been received (see Core Charges below).



A little about our Master Cylinder:

100% Factory Correct Mid 1965-1966 Corvette Master Cylinder with Power Brakes. These brand new Licensed Official GM Restoration Parts master cylinders are correct in every way. Manufactured from the original GM blueprints, they have the correct GM Part # 5467005, Correct Casting # 5467084 and factory 7/16" x 24 threads. Even our caps are it, and have the correct amount of yellow haze and the correct markings. We also offer Julian Dating stamping to make it official for an additional $50. These genuine Delco master cylinders are a direct factory replacement for your 1965-66 Corvette with Power Brakes and truly worthy of any restoration. We also now feature the Early 1965 Corvette Master Cylinder in our eBay store.
-


Year

Mid 1965-1966

Brakes

Power

Condition

NEW

GM Part #

5467005

Casting #

5467084

Brake Line Size

1/4"

Bore Size

1"

Brake Line Inlet Size

7/16" x 24 Thread

Cap

Correct Factory Markings

Weight

5 lbs. 13 oz.

1963 Corvette Master Cylinder Power Brakes 5463285, 5462389
         100% CORRECT

Manufactured from Factory Original GM Blueprints

GM Licensed Restoration Part

100% Original Delco Moraine

Correct Finish

Correct Bore

Julian Dating Available

100% FACTORY CORRECT GM DELCO MORAINE 1965-1966 MASTER CYLINDER






After 30 years CSSB is excited to finally offer our exclusive Officially GM Licensed Master Cylinders for Mid-Year 1965-66 Corvettes with Power Brakes. Meticulously manufactured from the factory original blueprints, these master cylinders are EXACT in every way including the Delco Mark. Featuring correct embossed GM casting # 5467084, Correct GM Part# 5467005, correct vehicle specific line ports, correct caps, factory finish and more... these are it!

There were 2 master cylinders offered; the Early 1965 Corvette Master Cylinder with small brake line ports (3/8 x 24 thread), and the other being the Mid Year 1965-66 Corvette Master Cylinder which had larger brake line ports (7/16 x 24 thread). The smaller port was usually on early to mid 1965 cars and the larger port was found on both Mid Year 1965-66 cars, we offer both versions!

Dont let us be the judge, ask around and read your judging literature. There have been horrible Illegal reproductions of this master cylinder that were just garbage. We know, we purchased them for resale and were forced to pull them off our product line due to our strict quality standards. So with no other options, we decided to pick this project up and do it right! Since we have been an Official GM Restoration Licensee Manufacturer for years, we requested an Amendment to our existing License to add 1965 & 1966 mid-year Corvette Power Brake Master Cylinders. Now that GM is back on their feet and better than before, we have been given the GREEN Light to produce these Correct Master Cylinders. Even the caps have the correct yellow ting to them making these Power Brake Master Cylinders a real eye catcher and Show Winner.





OPTIONS:

* denotes required field

Year of Corvette*
BASE KIT REFUNDABLE CORE CHARGE REQUIRED You must click "Add Refundable Core Charge" Below (Base Kit Only, other add ons may require additional core charges)*
Master Cylinder Options
VIN or BUILD DATE (If opting for Dated Master Cylinder above)
Brake Booster with Correct Part Number and/or Dated
STAINLESS SUPER UPGRADE KIT - Includes complete Stainless Steel Braided Brake Hose Set, 2 Stainless Trailing Arm Lines & 4 Brake Hose "Horseshoe" Clips
ADD A ROTOR SET - Complete Set of 4 (Standard or Slotted & Drilled)
HAWK PERFORMANCE BRAKE PAD UPGRADE - Complete Front/Rear Set of 8 "Ferro Carbon Performance Pads"
BRAKE LINE KIT - Complete Set | Factory or Stainless
BRASS BRAKE LINE BLOCK KIT
CLIP KIT for BRAKE & FUEL LINES - Complete Set
LEFT TRAILING ARM | Complete Rebuilt Exchange (Price Includes Refundable Core Charge)
RIGHT TRAILING ARM | Complete Rebuilt Exchange (Price Includes Refundable Core Charge)
Send an Original GM Delco Factory Correct Casting # Caliper for your Year?
