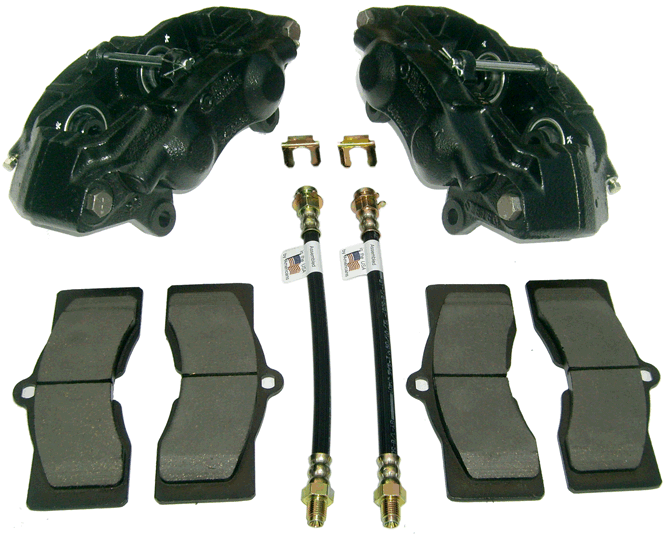

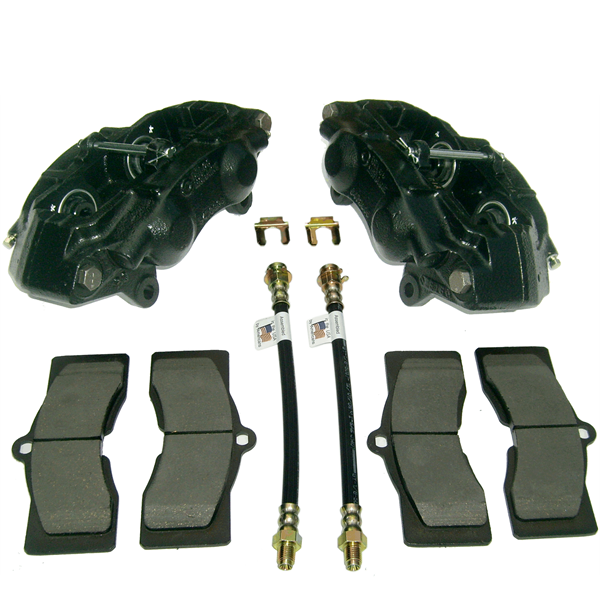

1965-1982 Corvette 2 Rear Stainless Steel O-Ring Brake Caliper Kit Bundle with Pads, Brake Hoses & Clips GM Licensed


Price: $420.96
IN STOCK!
PART#: CALP-Kit-R-DLX

OPTIONS:

Upgrade to Hawk HPS Performance Brake Pads?
No Thanks
YES, Upgrade Me! (+ $59.99)

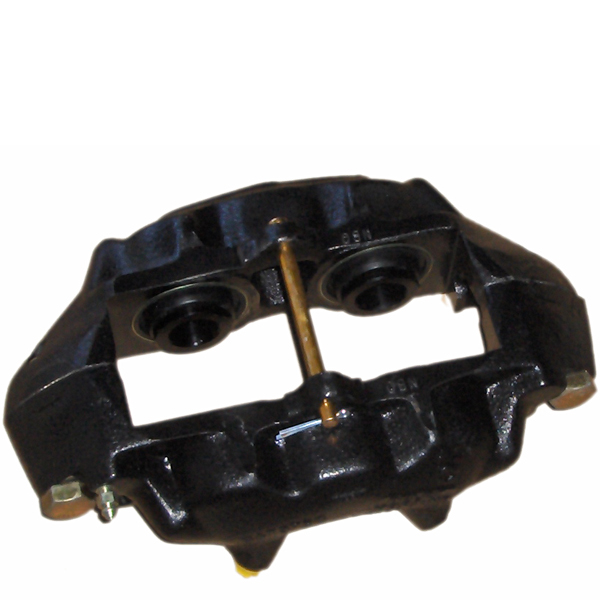

Finally,  New GM Licensed Delco Moraine Corvette Calipers are available.  This listing is for rear calipers left and right totaling 2 calipers. No core required.  We have been selling these new GM licensed caliper to the big catalog companies for a little over a year now.   We put every original detail into making these new calipers. Example- our front calipers have "Arma Steel"  cast into the calipers;  just as GM did when they manufactured these calipers in 1967. We do not require a core exchange. We take these new GM Licensed caliper  castings and bore them out and install stainless steel sleeves; then we assemble them with O-Ring style pistons, stainless steel piston return springs, silver zinc plated bleeder screws, and yellow zinc. brake pad pin.  We use new period correct caliper bridge bolts "S"  for the  "545" castings which are installed on 1967-72 Corvettes. Use only DOT 3 or DOT 4 brake fluid.

Rear Calipers have casting #'s 5452281 inboard & 5452284 outboard.  As of 7/29/21 all castings are grey.   In the future however, the castings will be black.

Use only DOT 3 or DOT 4 brake fluid. Do NOT use DOT 5 brake fluid.

Using DOT 5 Brake Fluid Will Void Warranty

Fits: 1965, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, c2, c3, c-2, c-3




  Today's Dr. Vette Gold Series Brake Calipers are the Culmination of Design Process that started in 1979. No other Corvette caliper offers the combination of perfect castings and state of the art components, like our 45 degree parting line O-ring installed on every Dr. Vette O-Ring Piston. Our O-Ring design virtually eliminates the dreaded common leaky caliper syndrome like with the old lip seal design. From the beginning of hand selected castings, through the total renewal of all threads, port holes, facings, to the precision insertion of the smoothest stainless steel sleeve available. The Gold Series O-Ring Type Calipers are a genuine work of art!




Why go with O-Ring Calipers?

Lip seal design seals are used on 1965-1982 Corvette calipers. Lip seals have inherent problems. When they sit for a period of time they leak brake fluid. When they are used on a Corvette with out of spec rotors, spindles, loose bearings or a Corvette that is driven hard; they can actually suck air into the caliper fluid area causing a loss of brake pedal. This problem is called (by GM engineers) "Reverse Air Oscillation".. Because of these problems, GM quit using lip seals in 1982. O-Ring seals virtually eliminate all of these lip seal problems. If GM doesn't use lip seals anymore, why are you? Get the best with our Dr. Vette Calipers!
