DOT 5 Brake Fluid
"Will Void Warranty"
For more Info Click here
Who is CSSB,inc?
44 Years?
No Warranties Issued on Items Shipped
or Used Outside Of the Continental U.S.A
|
O-Ring Conversions
|
Everything you need to completely rebuild your leaky, old and worn out
disc brake calipers to the trouble free O-Ring Piston design.
| |
| |
•
|
Quick, Easy & Affordable |
| |
•
|
No More Core Charges |
| |
•
|
Use Your Existing Calipers* |
| |
•
|
Save Down Time |
| |
•
|
Virtually Eliminate Leaky Calipers |
| |
•
|
Double Your Sealing Power |
| |
•
|
Upgrade & Rebuild at the Same Time |
Our Dr. Vette Corvette Brake Caliper Conversion Kits allow you to not only completely rebuild, but upgrade your existing brake calipers quickly, easily and affordably. Designed to save you down time, the cost of new calipers, core costs and the outrageous shipping costs of getting them to your door. With all the savings and upgrades these kits are truly a no brainer. Upgrade today to the trouble free O-ring Piston design that also gives you double the sealing power, virtually eliminating the common problematic leaking caliper syndrome. |
| Did you Know? |
|
|
9 out of 10 of all Corvette brake calipers are already sleeved and ready for our conversion kits? This makes rebuilding and converting to the desired O-Ring piston design easy, quick and affordable. Simply disassemble your old existing calipers*, clean, paint and install one of our Conversion kits and you're all done! |
|
|
 |
|
|
FRONT INSTRUCTIONS
|
REAR INSTRUCTIONS
|
|
|
| |
|
|
Let's Compare Original Lip Seals to the Improved O-Ring Piston Design

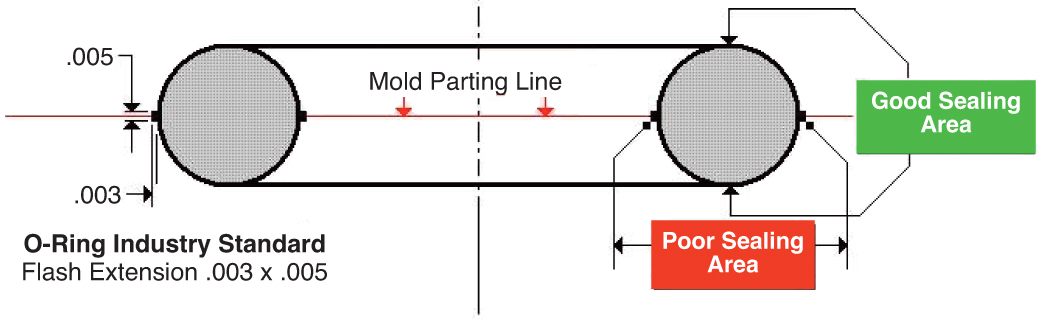

CONVENTIONAL O-RING DESIGN
Conventional O-Rings have only 2 good sealing surfaces
|
| |
| Lip seal design seals are used on 1965-1982 Corvette calipers. Lip seals have inherent problems. When they sit for a period of time they leak brake fluid. When they are used on a Corvette with out of spec rotors, spindles, loose bearings or a Corvette that is driven hard; they can actually suck air into the caliper fluid area causing a loss of brake pedal. This problem is called (by GM engineers) reverse air oscillation. Because of these problems, GM quit using lip seals in 1982. O-Ring seals virtually eliminate all of these lip seal problems. If GM doesn't use lip seals anymore, why are you? |

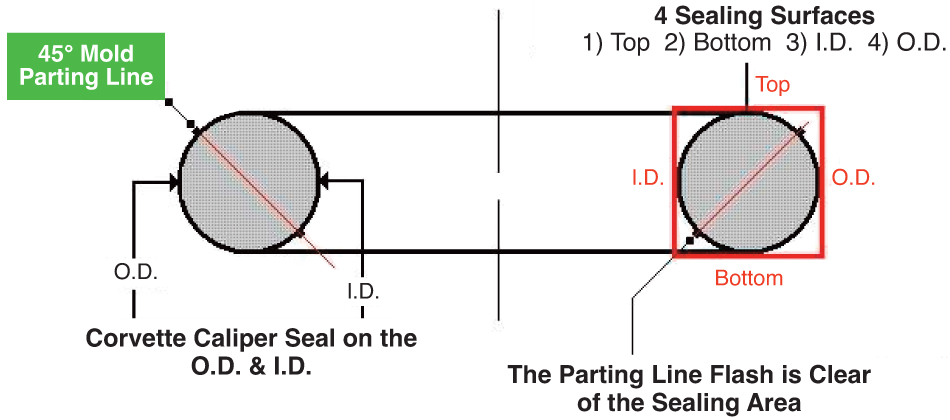

DR. VETTE O-RING DESIGN
Dr. Vette O-Rings feature 45 degree Parting Line O-Rings and
have 4 Good Sealing Surfaces
|
|
|
|
|
|
|
|
|
|
|
|
|

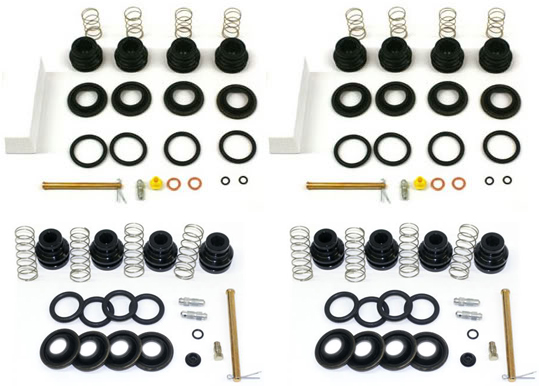

1965-82 Corvette High Heat Caliper O-Ring Conversion Kit (Front)
|
1965-82 Corvette High Heat Caliper O-Ring Conversion Kit (Rear)
| | |
|
|
|
